Primary Packaging
Rotary Filling and Sealing Machine
A rotary filling and sealing platform for cups and rigid containers. The rotary layout keeps stations compact and product flow continuous, which suits producers running steady volumes on a small number of formats.

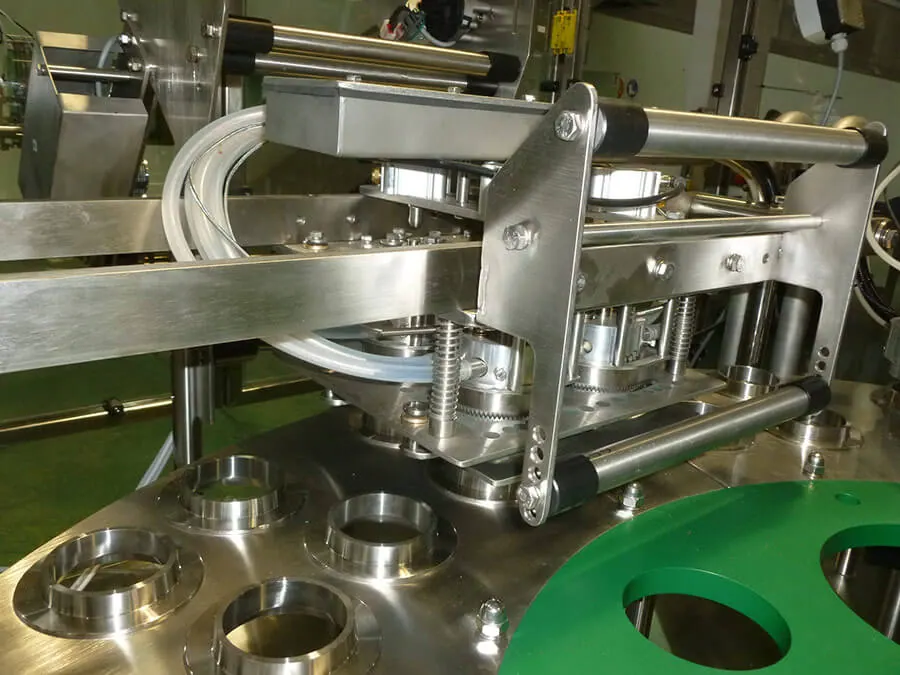

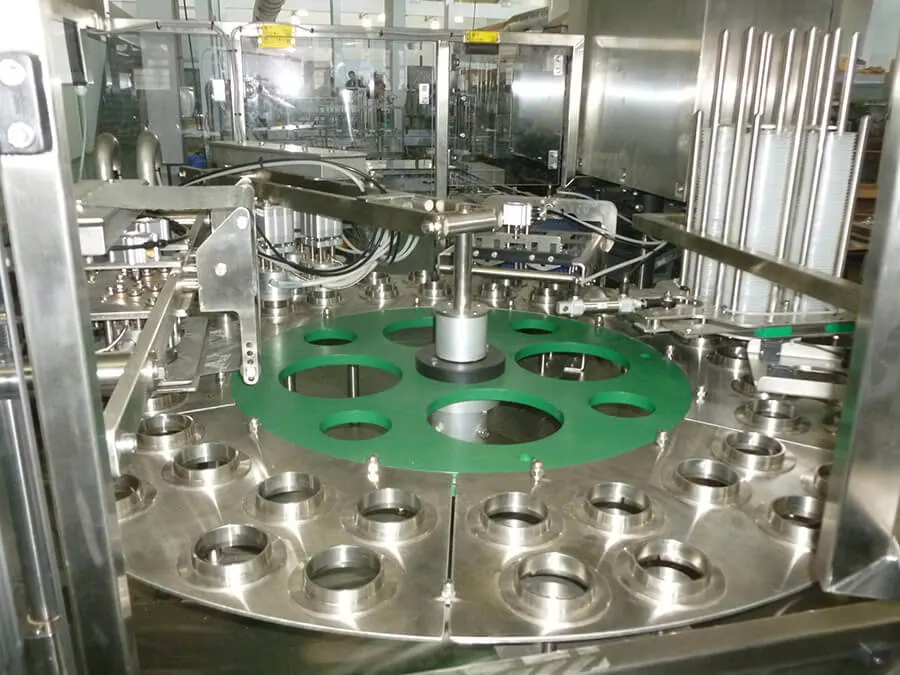

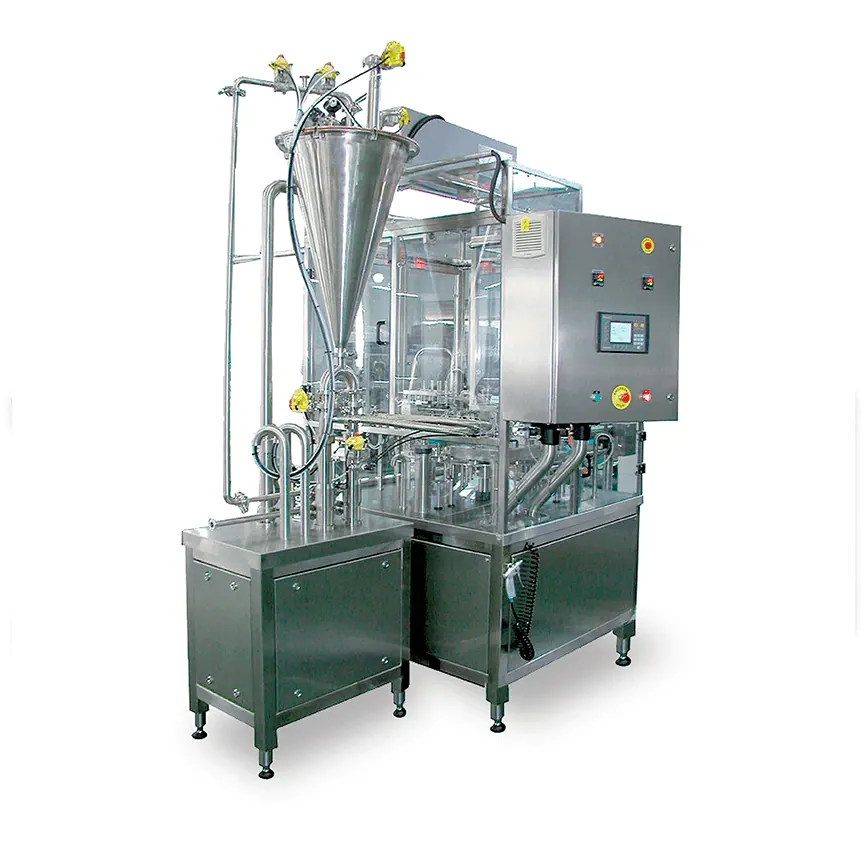

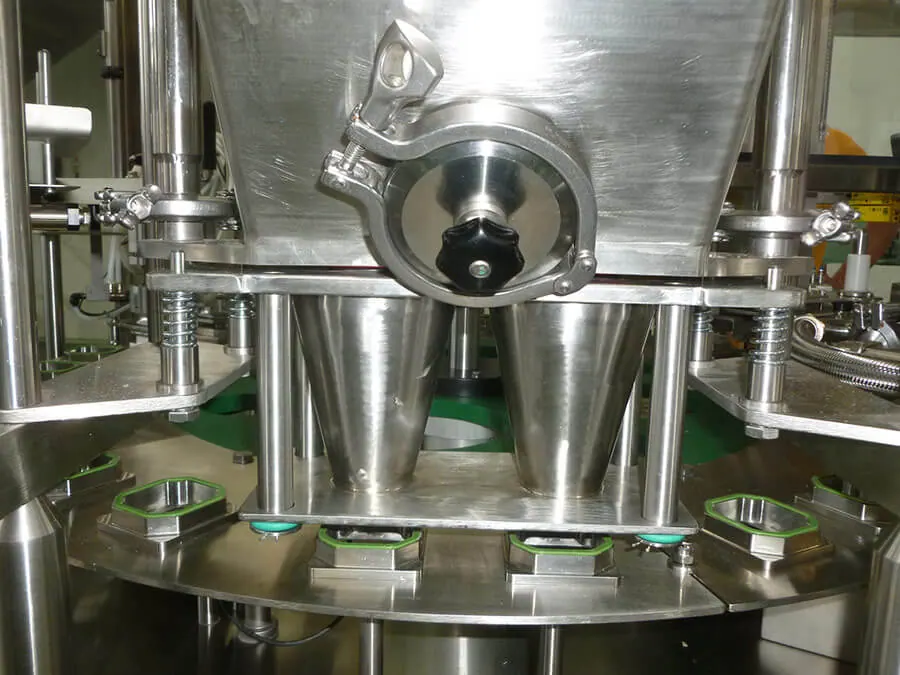

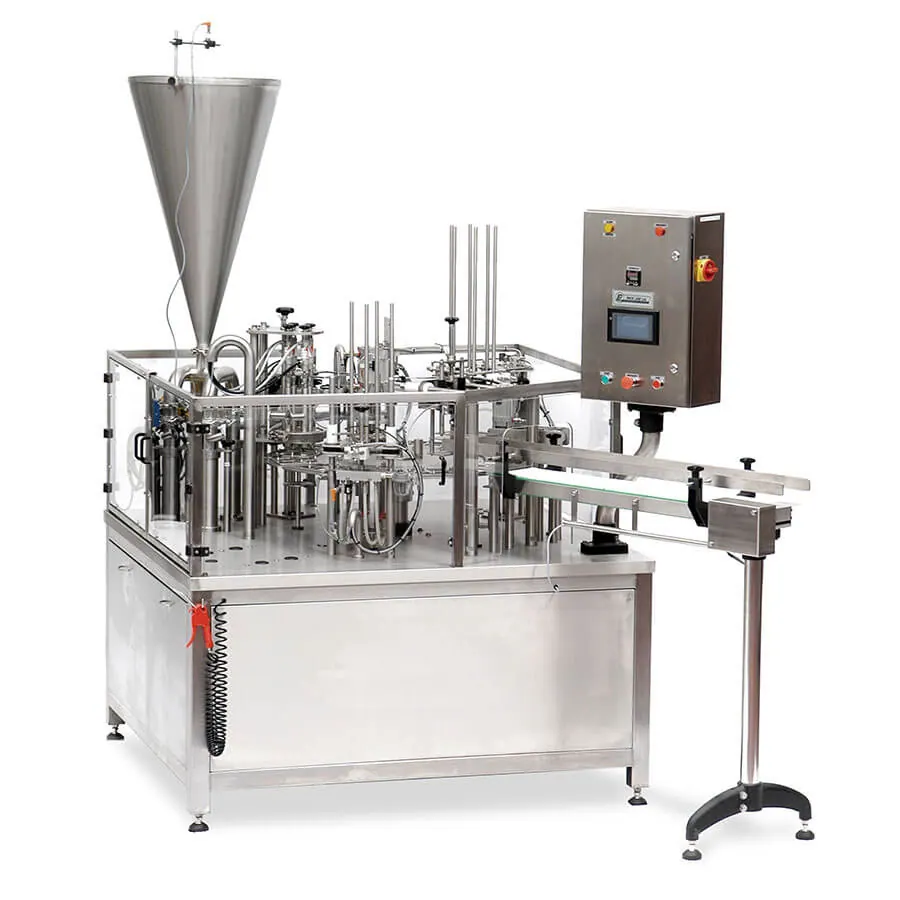

This servo-driven rotary filler and sealer runs on a 12-station turntable, giving it a compact footprint while keeping cycle times fast and consistent. The rotary layout suits liquids, pastes, granules, and powders that need accurate dosing and a clean seal.
Every build is customized around the specific product, container, and closure method the customer is running, with support for cup diameters up to 7 inches.
For higher throughput needs, the platform can scale up to six lanes and add as many as three separate filling heads working together.
A Clean-in-Place (CIP) package is available on the cup fillers to automate sanitation and cut down on manual washdown time.
Sealing can be done with pre-die-cut lids or with membrane material dispensed and cut from a continuous roll, and a snap-on plastic cap can be added afterward for extra protection.
A PLC governs the whole process, and switching between container formats takes only minor, quick adjustments.
Wetted parts are stainless steel throughout, and the frame combines stainless steel, anodized aluminum, and food-grade plastics, meeting CE, FDA, and 3A hygiene requirements.
Ideal applications
- Dairy and dessert cups
- Sauces and dips
- Ready meal components
- Retail single-serve packs
Package & product types
- Container
- Tray
- Cup
- Capsule
- Nuts
- Salads
- Cosmetics
- Vegetables / Fruits
- Drinks
- Coffee / Tea
- Seeds
- Cannabis
Key capabilities
- Rotary indexing with compact station layout
- Denesting, dosing, sealing and lidding
- Single or multi-component dosing options
- Gas flush arrangements for extended shelf life
Typical line integration
- Upstream product feeding, dosing or denesting
- Downstream labeling, coding and inspection
- Case packing and palletizing sections
- Unified line controls and recipe management
Videos

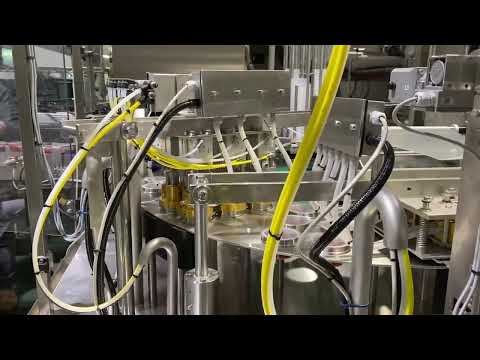

See it running
Real installation footage of this technology in production.
Machine videos
Videos show representative Pure installations. Configuration varies by application.
Related Machines
Technologies that pair with this machine
These sections commonly sit beside this machine in a Pure line.
Primary PackagingSemi Automatic Sealing Machine
Semi automatic sealing for trays, cups and rigid containers, with roll fed film and configurations for standard, MAP or vacuum skin packaging.
Learn More
Primary PackagingInline Servo Filling and Sealing Machine
Servo-driven inline filling and sealing for cups, trays and containers with accurate, repeatable motion control.
Learn More
Primary PackagingPneumatic Inline Filling and Sealing Machine
Pneumatic inline cup and container filling and sealing for producers entering or scaling automated packaging.
Learn MoreRotary Filling and Sealing Machine — Questions & Answers
What is a Rotary Filling and Sealing Machine?
Rotary cup and container filling and sealing for continuous, higher-output production.
What package formats can the Rotary Filling and Sealing Machine handle?
The Rotary Filling and Sealing Machine is used with container, tray, cup and capsule formats. Share your exact package specification with Pure to confirm fit.
What products can be packed on the Rotary Filling and Sealing Machine?
Typical products for the Rotary Filling and Sealing Machine include nuts, salads, cosmetics, vegetables / fruits, drinks, coffee / tea, seeds and cannabis.
Which industries use the Rotary Filling and Sealing Machine?
The Rotary Filling and Sealing Machine is used in Bakery & Biscuits, Food & Dairy, Pet-Food, Fresh Cut & Vegetables, Coffee, Tobacco & Cannabis, Tea & Beverage and Automation applications.
What options are available for the Rotary Filling and Sealing Machine?
Available options for the Rotary Filling and Sealing Machine include dosing system matched to the product, gas flush / MAP configuration, change parts for additional formats, seal verification and rejection and sanitary and wash-down execution.
Can the Rotary Filling and Sealing Machine integrate into a complete packaging line?
Yes. The Rotary Filling and Sealing Machine integrates with upstream product feeding, dosing or denesting, downstream labeling, coding and inspection, case packing and palletizing sections and unified line controls and recipe management.
How do I get a quote for a Rotary Filling and Sealing Machine?
Use the Request a Quote form or Discuss Your Project to share your product, package format, target speed and facility constraints. Pure will outline how this machine fits your line.
