Robotics
Integrated Robotic Packaging Systems
From high-speed Delta robot picking to complete robotic case packing cells, Pure Packaging Solutions integrates robotics, vision, conveyors and case handling into one synchronized packaging system.
Delta Robot Systems
High-speed picking, grouping and pattern creation
02Robotic Pick & Place Systems
Flexible loading, transfer, sorting and placement
03Integrated Robotic Case Erecting & Loading System
One cell: case forming plus Delta robot case loading
04Robotic Palletizing
Automated pallet building with layer and mixed pattern control
Robotic solution 01
Delta Robot Systems
Delta robot cells pick product directly from a moving conveyor and place it exactly where the line needs it, into trays, cups, clamshells, cartons, pouch machine infeeds or onto a grouped and patterned discharge. Vision guides the robot to randomly positioned product, so upstream mechanical orientation can often be reduced or removed.
High-speed picking, grouping and pattern creation
What Delta robots handle
- Food products, baked goods and confectionery
- Pouches, bags and flow-wrapped products
- Trays, cups, lids and rigid containers
- Wrapped and unwrapped packaged goods
Picking and placing
- Vision-guided random picking from moving conveyors
- Fixed-position picking where product is already registered
- Product orientation, rotation and alignment on placement
- Grouping, collating and pattern creation for downstream packing
- Multi-pick tooling where the product and rate allow
Why a Delta cell
- High-speed handling for light, repetitive picks
- Compact overhead footprint above the existing conveyor
- Repeatable placement without manual handling
- Hygienic, wash-down arrangements where the product requires it
- Reconfigurable for additional SKUs and formats
Typical line integration
Gallery
Robotic solution 02
Robotic Pick & Place Systems
Where formats change often, products vary or manual handling is hard to sustain, a Robotic Pick & Place cell gives a flexible answer. Tooling, vision and the cell layout are designed around your product and the space you have, and the same cell can carry several SKUs with a recipe change instead of a rebuild.
Flexible loading, transfer, sorting and placement
Tasks the cell performs
- Robotic loading and unloading of product
- Product transfer between machines and conveyors
- Sorting, orientation and accurate placement
- Collating and nesting before secondary packaging
Where product is placed
- Trays, clamshells and rigid containers
- Cartons and shipping cases
- Machine infeeds and denested container flights
- Downstream conveyors and accumulation tables
Tooling and flexibility
- Vision integration for random product position and orientation
- Custom EOAT: vacuum cups, mechanical grippers and custom tools
- Multi-SKU and recipe capability with fast changeover
- Guarding and cell layout designed around operator access
Typical line integration
Gallery
Machine videos
Videos show representative Pure installations. Configuration varies by application.
Robotic solution 03
Integrated Robotic Case Erecting & Loading System
This is one coordinated robotic case packing cell, not two separate machines standing next to each other. Cases are erected and positioned inside the cell, and a Delta robot picks product straight from the production conveyor and loads it into the open case, with count, orientation and case pattern managed by the robot and vision system, and case handling synchronized to the incoming product flow.
One cell: case forming plus Delta robot case loading
Case forming, in the same cell
- Automatic erecting and opening of cases and cartons
- Case magazine and blank handling
- Case positioning and hold at the loading station
- Optional case closing and sealing downstream
Delta robot case loading
- Product picked directly from the production conveyor
- Loaded straight into the erected case with no intermediate handling
- Product orientation and count managed by the robot and vision system
- Case pattern built layer by layer to the required arrangement
One coordinated system
- Case handling synchronized with the incoming product flow
- Single controls architecture across erecting, picking and discharge
- Compact footprint compared with separate stand-alone machines
- Reduced manual case forming and manual case loading
- Recipe changeover across case sizes and product patterns
Typical line integration

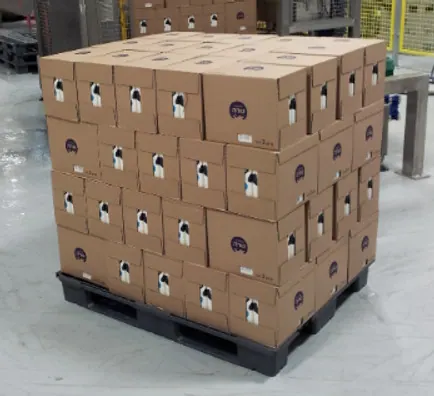

Case forming and robotic loading gallery
Robotic solution 04
Robotic Palletizing
Robotic palletizing cells build finished cases, bags and trays into stable pallet patterns and release them to stretch wrapping and shipping. The cell is laid out around your footprint, pattern requirements and safety design, with robotic or conventional handling arrangements depending on the load and rate you need.
Automated pallet building with layer and mixed pattern control
What the cell palletizes
- Cases, cartons and shipping boxes
- Bags, pouches and flexible packs
- Trays and rigid containers
- Mixed loads and layer patterns
Pallet building
- Layer, mixed and interlocked pattern building
- Robotic and conventional handling arrangements
- Pallet dispensing, slip sheets and pallet conveying
- Stretch wrapper integration and discharge to shipping
Why a robotic palletizing cell
- Consistent, repeatable pallet builds without manual lifting
- Compact footprint designed around your floor space
- Safety guarding and cell layout around operator access
- Recipe changeover across case sizes and pallet patterns
Typical line integration
Gallery
Robotics equipment
Machines in the robotics offering
Each robotic cell is specified with the equipment around it. The three robotic solutions above each link to their own machine page.
End of LineRSC Case Erector
RSC case erecting with bottom sealing, presented to the packing station.
Learn More
End of LineAutomatic Case Packing Machines
Top-load, side-load and robotic case packing for retail and distribution formats.
Learn More
End of LineAutomatic Palletizers
Robotic and conventional palletizing with pattern building and pallet handling.
Learn MoreQuestions & Answers
What robotic packaging systems does Pure offer?
Pure integrates robotic pick and place, case erecting, robotic case packing and robotic palletizing as part of end-of-line packaging automation.
Can robotics be added to an existing packaging line?
Yes. Robotic cells can be integrated downstream of existing primary packaging equipment and connected to the line's controls.
How do I scope a robotic palletizing or case packing project?
Share the case sizes, pallet pattern, line speed and available floor space through the Request a Quote form, and Pure will outline a suitable cell.
Configure a Robotic System
Tell us the product, the rate and the pack format. We'll scope the robotic cell — Delta robot, pick & place or an integrated case erecting and loading cell — around your line.
